Pressure Vessels & Filters
Robust Housing Solutions for Filtration, Softeners, and Ion Exchange Units
Pressure vessels are engineered containers designed to hold and manage pressurized liquids or gases — primarily water — during various stages of industrial treatment. In water treatment, they serve as housings for media such as sand, activated carbon, softening resin, or ion-exchange resin. These vessels ensure water flows evenly through the media under controlled pressure, enabling consistent filtration and treatment.
Applications
- Pretreatment Units: Sand, gravel, and multimedia filters
- Post-treatment: Activated carbon filtration, polishing filters
- Softeners: Hardness removal using ion exchange resins
- Demineralization Units: Cation and anion resin-based processes
- Reverse Osmosis Protection: SDI and turbidity control
- Effluent & Sewage Treatment: Organic and suspended solids removal
Types of Pressure Filters Based on Media & Function
| Filter Type | Media Used | Purpose |
|---|---|---|
| Multimedia Filter (MMF) | Sand, gravel, anthracite | Suspended solids & turbidity removal |
| Activated Carbon Filter (ACF) | Coconut shell carbon | Chlorine, odor, organic compound removal |
| Softener Vessel | Cation resin (Na⁺ cycle) | Hardness removal |
| Iron Removal Filter (IRF) | Manganese dioxide, Birm | Fe & Mn removal |
| Bag/Micron Filters | PP cartridges or mesh bags | Fine filtration (5–100 micron) |
Construction Materials & Grades
| Material | Suitable For | Notes |
|---|---|---|

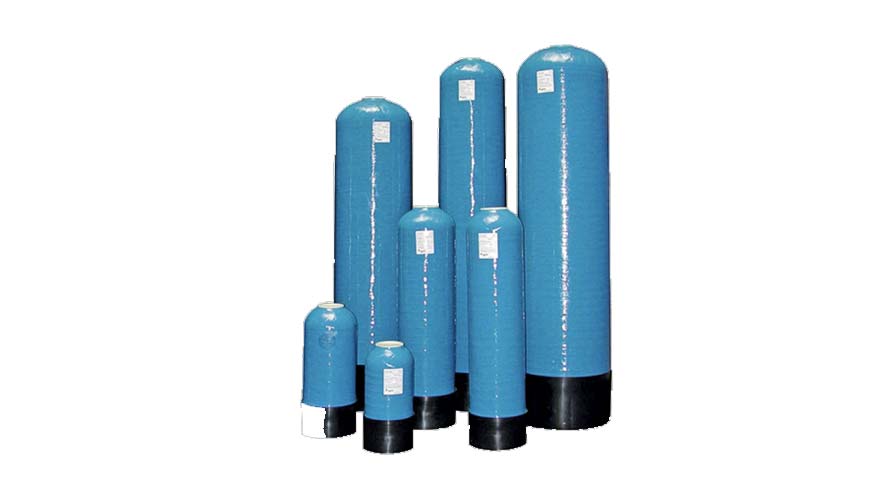

| FRP (Fiber-Reinforced Plastic) | Domestic & Industrial RO, DM Plants | Corrosion-resistant, lightweight |

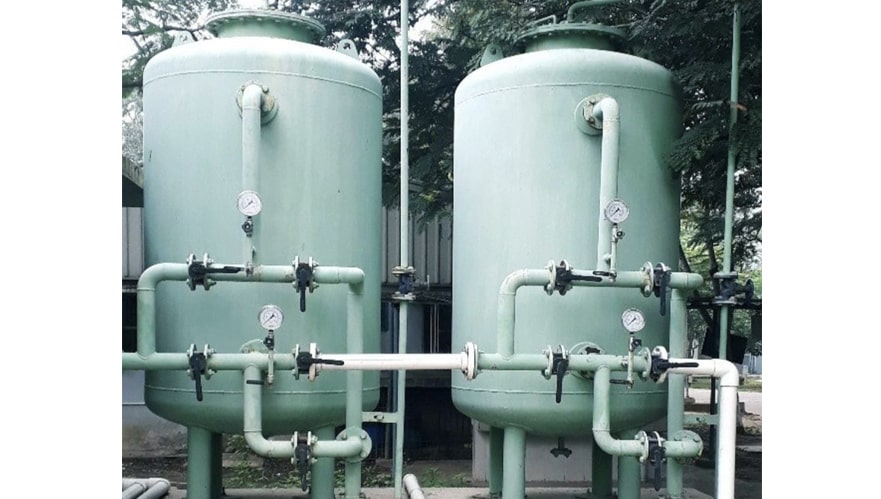

| Mild Steel (MS) | Large industrial plants | Requires epoxy coating inside |
| MSRL (MS Rubber Lined) | Acidic/alkaline chemical flows | Rubber protects against corrosion |

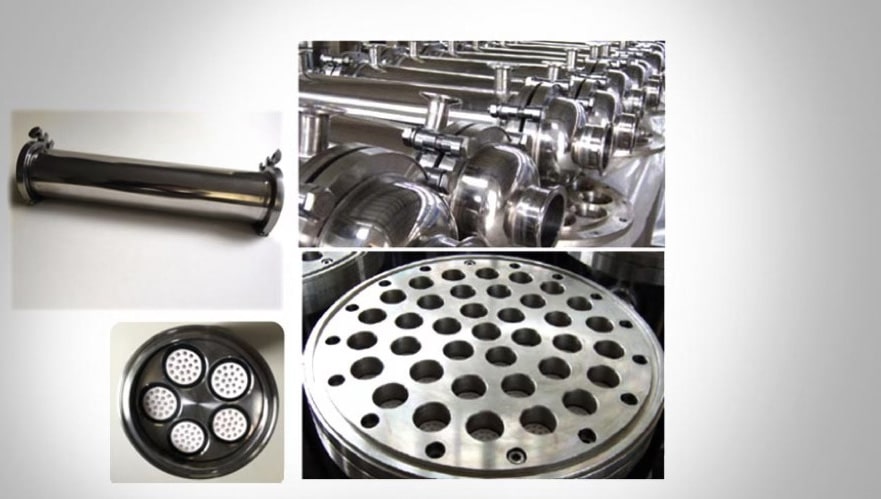

| Stainless Steel (SS 304/316) | Food, pharma, high purity applications | High durability, CIP compatible |
Design Parameters
| Parameter | Typical Range |
|---|---|
| Working Pressure | 2 – 10 bar (up to 20 bar on request) |
| Operating Temperature | 5°C – 60°C (higher with SS) |
| Flow Rate Capacity | 0.5 – 100 m³/hr per vessel |
| Connection Sizes | 1” – 12” flanged/threaded/tri-clamp |
| Media Retention | Internal strainers/underdrain systems |
Key Features of BT Water Pressure Vessels
- Precision Fabricated – Welded or filament-wound, as per application
- Modular Options – Single, twin, or multi-vessel skids
- High Surface Finish – Ideal for high-purity or CIP applications
- Wide Range of Valve Controls:
- Manual (Ball/Butterfly)
- Semi-automatic (Multiport Valves)
- Fully automatic (PLC/Timer-based)
Certifications & Standards
- ASME Section VIII (for MS/SS vessels on request)
- NSF-certified FRP vessels (for potable use)
- BIS-compliant designs for packaged systems
Installation & Maintenance
- Compact skid-based setups available
- Drain, backwash, and vent ports as standard
- Resin/media replacement typically every 12–36 months depending on feed water quality
Why Choose BT Water’s Pressure Vessels?
- In-house fabrication ensures fast turnaround and QC
- Customizable as per industry standards (pharma, food, textiles, chemicals)
- Retrofits available for any existing plant design
- Full support for media sizing, installation & commissioning
Common Industries Served
- Power Plants
- Chemical Processing Units
- Breweries and Distilleries
- Hospitals and Hotels
- Automobile & Paint Booths
